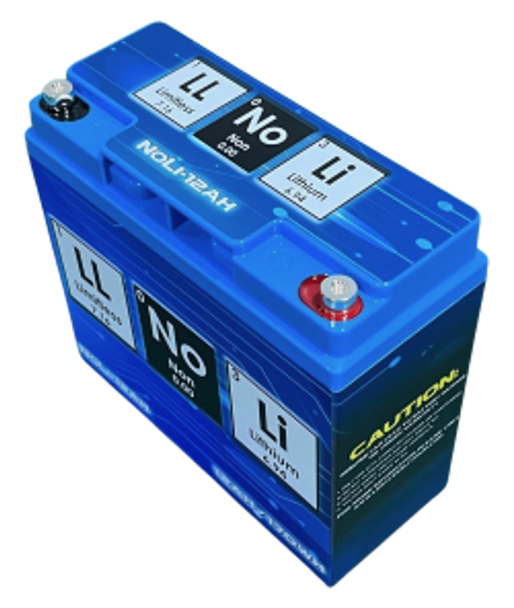

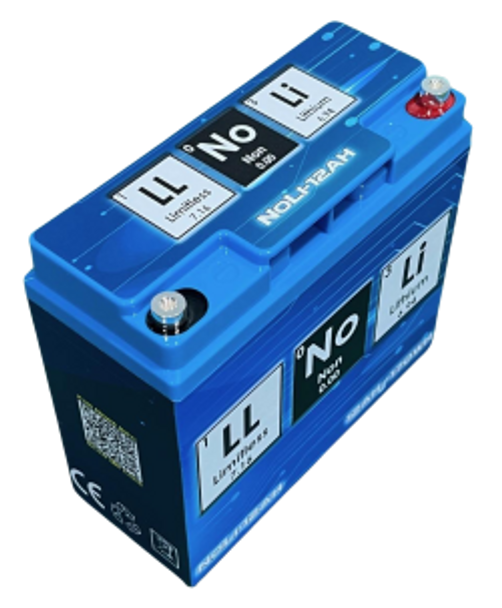

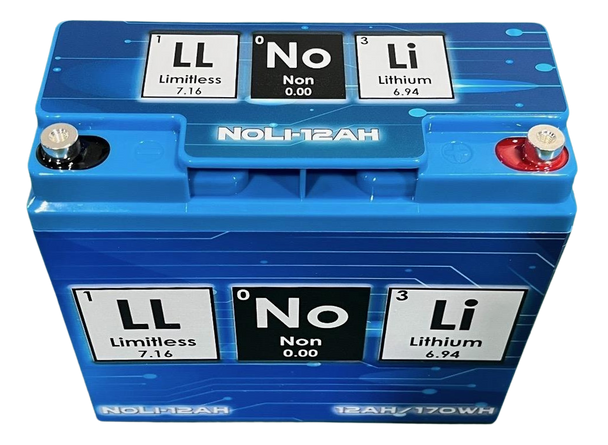

Limitless Lithium NoLi Sodium 12Ah Battery
Limitless Lithium NoLi Sodium 12Ah Battery
Regular price
$399.00 USD
Regular price
Sale price
$399.00 USD
Unit price
per
LIMITLESS BATTERY SPECIFICATIONS | Ratings | Comments |
Specifications | ||
Battery Model | NoLi-12AH | |
Resting Voltage (Charge Voltage Dependent) | 12-15.5V | |
Float/Maintenance Charging Voltage | 14.2V | |
Max Charging Voltage | 16V | |
Minimum Charging Voltage | 10V | |
Capacity (Ah) | 12AH | |
Capacity (Pb Eq) | 48Pb Eq | |
Cell Chemistry | SIB | |
Cell Life Cycles | 4,000 | 80% DOD |
Craking Amps (CA) | 1170 | |
Cold Craking Amps (CCA) | 880 | |
Nominal Operating Temperature Range | 14F-140F | |
Terminal Bolt Size | M5 | |
Terminal Orientation | Right Positive | |
Balance Board Installed | Yes | |
Battery Management System Installed (BMS) | No | |
Performance 14.6V (Standard Voltage) | ||
RMS Wattage (Installed with 100A stock alternator) | 2,000-2,500W | 14.6V Input Voltage |
Max Burst Wattage (Installed with 100A Alternator) | 3,500W | 14.6V Input Voltage |
RMS Amperage Output (Stand Alone for 30 seconds) | 75A | Starting at 14.6V |
Max Burst Amperage Output (Stand alone for 10 seconds) | 150A | Starting at 14.6V |
Recommended Charging/Input Current | Stock Alt | |
Maximum Charging/Input Current | 300A | Charging above 300A Shortens the cycle life |
Performance 16V (High Voltage) | ||
RMS Wattage (Installed with 100A stock alternator) | 2,500-3,000W | 16V Input Voltage |
Max Burst Wattage (Installed with 100A Alternator) | 4,000W | 16V Input Voltage |
RMS Amperage (Stand Alone for 30 seconds) | 100A | Starting at 16V |
Max Burst Amperage (Stand alone for 10 seconds) | 200A | Starting at 16V |
Recommended Charging/Input Current | Stock Alt | |
Maximum Charging/Input Current | 300A | Charging above 300A Shortens the cycle life |
Measurements | ||
Overall Length | 7" | |
Overall Width | 3" | |
Overall Height | 6.5" | |
Overall Height (Without Terminals) | 6.5" | |
Weight | 4.10 LBS | |
BCI Battery Group Model | 20 | |
Shipping Information | ||
Gross Single Unit Weight | 4.15 LBS | |
Single Unit Box Dimensions W x L x H | 3.75 x 8.5 x 8.25 | |
Quantity of Units in Master Carton | 6 | |
Gross Master Carton Weight | 28.10 LBS | |
Master Carton Dimensions W x L x H | 11.5 X 19.5 x 13 |
