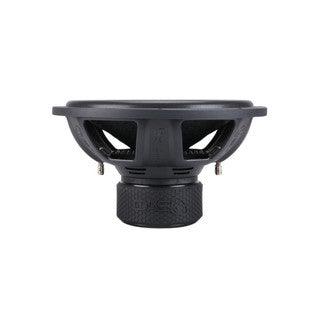

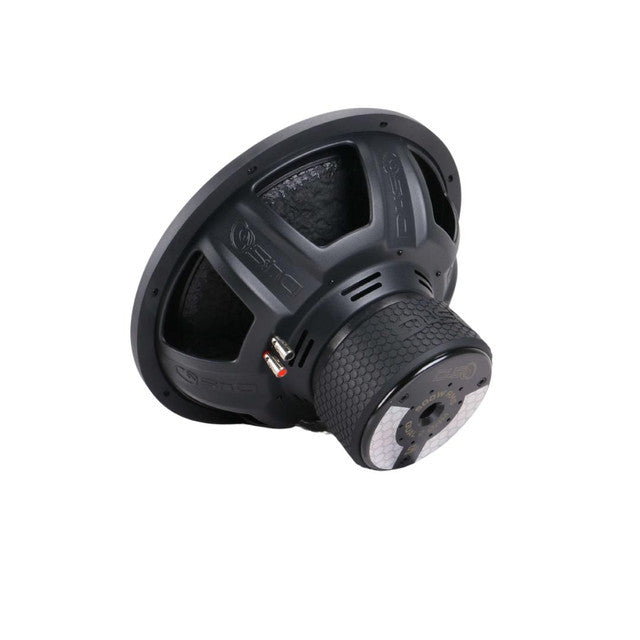

DOWN4SOUND SB 15" SUBWOOFER - 2 OHM DVC | 500W RMS

DOWN4SOUND SB 15" SUBWOOFER - 2 OHM DVC | 500W RMS

Regular price $189.99 USD
Regular price Sale price $189.99 USD
Sale Sold out

QUICK NOTES:

  • RMS Handling: 500W RMS
  • Coil Size: 2.5 Inch
  • Cutout Diameter: 13.62 inches / 346 mm
  • Outer Diameter: 15.51 inches / 394 mm
  • Mounting Depth: 8.01 inches / 203.5 mm
  • Motor Height: 3.54 inches / 90 mm
  • Net Weight: 46.3 lbs / 21 kg
  • Gross Weight: 50.7 lbs / 23 kg
  • Highly optimized suspension for accurate sound reproduction
  • Designed for versatility in high-performance setups

Technical Specifications:

  • Revc (DC Resistance): 2.03 Ohm
  • Resonance Frequency (Fs): 30.87 Hz
  • BL Product: 16.42 T·m
  • Total Moving Mass (Mms): 271.1 g
  • Suspension Compliance (Cms): 83.11 μm/N
  • Effective Piston Area (Sd): 855.29 cm²
  • Equivalent Volume (Vas): 91.18 L
  • Sensitivity (SPL): 87.0 dB
  • Qms (Mechanical Q): 4.132
  • Qes (Electrical Q): 0.825
  • Qts (Total Q): 0.689
  • Outside Diameter: 15.59 in (396mm)
  • Displacement: 0.19 cu ft

Recommended Enclosures:

  • Ported Enclosure Size: 3.0 cu ft (net)
  • Port Area: 44 sq in
  • Port Tuning: 35 Hz
  • Sealed Enclosure: Not Recommended

Why You Should Buy:

  1. Powerful Low-End Performance: Delivers clean, precise bass with unmatched clarity.
  2. Dual 2-Ohm Configuration: Offers flexible wiring options for seamless integration with your amplifier.
  3. Robust Construction: Engineered for durability and optimized for high-intensity audio applications.
  4. Precision Engineering: Designed to provide superior sound reproduction, making every beat impactful.
