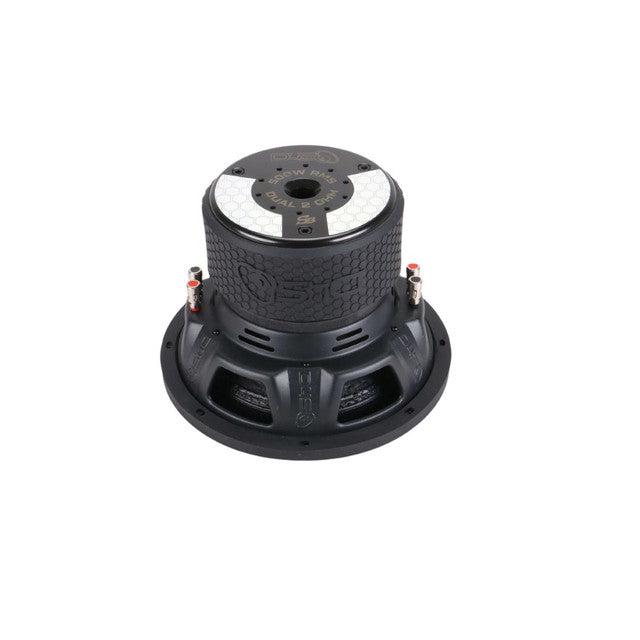

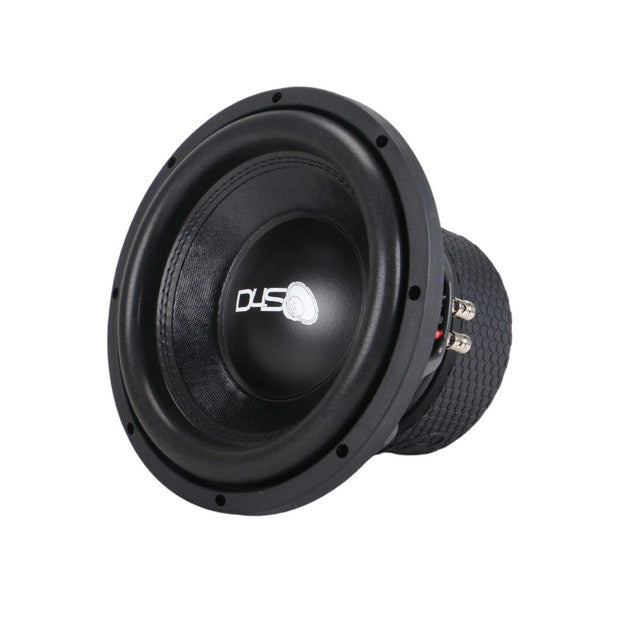

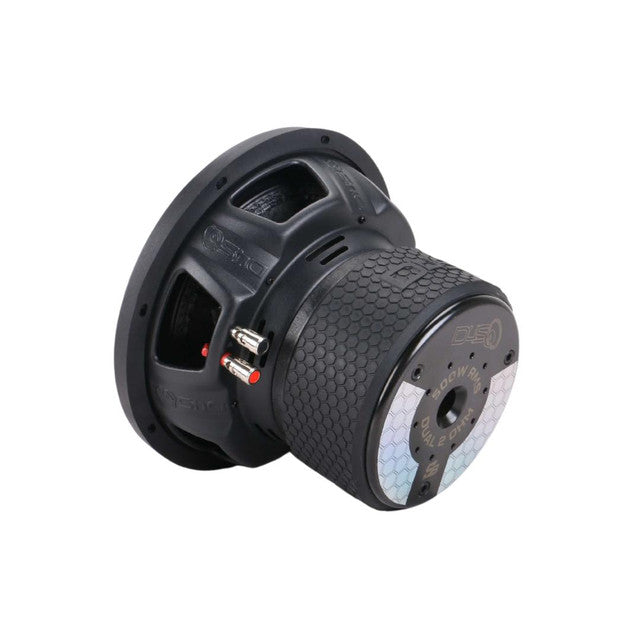

DOWN4SOUND SB 10" SUBWOOFER - | 500W RMS

Elevate your car audio system with the DOWN4SOUND SB 10” Subwoofer, designed to bring precise, deep bass and exceptional clarity to your setup. With a dual 2-ohm voice coil configuration and 500W RMS power handling, this subwoofer delivers a perfect balance of performance and durability for your audio needs.

QUICK NOTES:

• RMS Handling: 500W RMS
• Coil Size: 2.5 Inch
• Cutout Diameter: 9.06 inches / 230 mm
• Outer Diameter: 10.28 inches / 261 mm
• Mounting Depth: 6.46 inches / 164 mm
• Motor Height: 3.54 inches / 90 mm
• Net Weight: 41.9 lbs / 19 kg
• Gross Weight: 45.2 lbs / 20.5 kg
• Highly optimized suspension for accurate sound reproduction
• Compact yet powerful for high-performance setups

Technical Specifications:

• Revc (DC Resistance): 2.03 Ohm
• Resonance Frequency (Fs): 30.88 Hz
• BL Product: 19.38 T·m
• Total Moving Mass (Mms): 171.79 g
• Suspension Compliance (Cms): 151.45 μm/N
• Effective Piston Area (Sd): 506.71 cm²
• Equivalent Volume (Vas): 24.35 L
• Sensitivity (SPL): 83.0 dB
• Qms (Mechanical Q): 3.474
• Qes (Electrical Q): 0.555
• Qts (Total Q): 0.479

Recommended Enclosures:

• Ported Enclosure Size: 1.0 cu ft (net)
• Port Area: 15 sq in
• Port Tuning: 35 Hz
• Sealed Enclosure: Not Recommended0

Why You Should Buy:

1. Powerful and Compact: Ideal for setups that demand impactful bass without compromising space.
2. Versatile Wiring: Dual 2-ohm configuration supports multiple amplifier setups.
3. Durable Build: Designed for long-term performance under high-intensity use.
4. Enhanced Bass Reproduction: Delivers clean, precise low-frequency sound with optimized suspension.
