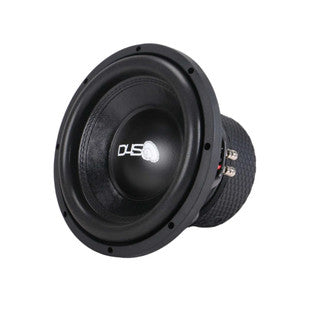

DOWN4SOUND SB 10" SUBWOOFER - 4 OHM DVC | 500W RMS

DOWN4SOUND SB 10" SUBWOOFER - 4 OHM DVC | 500W RMS

Regular price $134.99 USD
Regular price Sale price $134.99 USD
Sale Sold out

QUICK NOTES:

  • RMS Handling: 500W RMS
  • Coil Size: 2.5 Inch
  • Cutout Diameter: 9.06 inches / 230 mm
  • Outer Diameter: 10.28 inches / 261 mm
  • Mounting Depth: 6.46 inches / 164 mm
  • Motor Height: 3.54 inches / 90 mm
  • Net Weight: 41.9 lbs / 19 kg
  • Gross Weight: 45.2 lbs / 20.5 kg
  • Highly optimized suspension for accurate sound reproduction
  • Compact design for versatile installations

Technical Specifications:

  • Revc (DC Resistance): 2.03 Ohm
  • Resonance Frequency (Fs): 30.88 Hz
  • BL Product: 19.38 T·m
  • Total Moving Mass (Mms): 171.79 g
  • Suspension Compliance (Cms): 151.45 μm/N
  • Effective Piston Area (Sd): 506.71 cm²
  • Equivalent Volume (Vas): 24.35 L
  • Sensitivity (SPL): 83.0 dB
  • Qms (Mechanical Q): 3.474
  • Qes (Electrical Q): 0.555
  • Qts (Total Q): 0.479
  • Outside Diameter: 10.28 in (261 mm)
  • Displacement: 0.09 cu ft

Recommended Enclosures:

  • Ported Enclosure Size: 1.0 cu ft (net)
  • Port Area: 15 sq in
  • Port Tuning: 35 Hz
  • Sealed Enclosure: Not Recommended

Why You Should Buy:

  1. Powerful Performance in a Compact Design: Offers impressive bass response with a space-saving design.
  2. Dual 2-Ohm Flexibility: Supports versatile wiring configurations for seamless amplifier pairing.
  3. Built for Longevity: Engineered with premium materials to handle intense use and provide long-lasting performance.
  4. Superior Sound Quality: Optimized suspension delivers precise, clean low frequencies for any genre of music.
