QUICK NOTES:
- RMS Handling: 1700W RMS
- Coil Size: 3 Inch
- Cutout Diameter: 17 inches / 431.8 mm
- Mounting Depth: 11.81 inches / 300 mm
- Weight: 68 lbs
- Xmax: 33 mm (one-way)

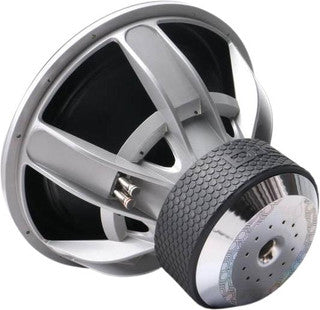

- Motor Size: 8.66 in - 220 mm | 4.33 inches (Radius)
- Highly extended pole piece for increased linear throw and durability
- Pole vent flared on both ends for superior cooling and low noise
- Extensive rear gap venting to ensure lower coil temperatures
Precision Engineering:
Features an optimized motor strength (BL Product: 28.212 T·m) and an effective piston area (Sd) of 113.411 cm² for efficient sound output.
Technical Specifications:
- Revc (DC Resistance): 4.050 Ohm
- Resonance Frequency (Fo): 28.035 Hz
- Total Moving Mass (Mms): 492.526 g
- Suspension Compliance (Cms): 65.433 μm/N
- Equivalent Volume (Vas): 119.508 L
- Sensitivity (SPL): 87.9 dB
- Qms (Mechanical Q): 3.012
- Qes (Electrical Q): 0.659
- Qts (Total Q): 0.541
- Mechanical Resistance (Rms): 0.80
- Outside Diameter: 18.49 in (469 mm)
- Displacement: 0.21 cu ft
Recommended Enclosure:
- Ported Box Volume: 7 cubic feet
- Port Tuning Frequency: 28-32 Hz
Why You Should Buy:
- Exceptional Performance: Designed for audiophiles who seek deep, precise, and high-quality bass. This subwoofer brings out the best in every beat.
- Versatile Compatibility: The 4-ohm DVC setup allows for multiple wiring options, making it suitable for various car audio configurations.
- Durability and Reliability: Built with premium materials to endure intense sound pressure levels and long-term use without compromising performance.

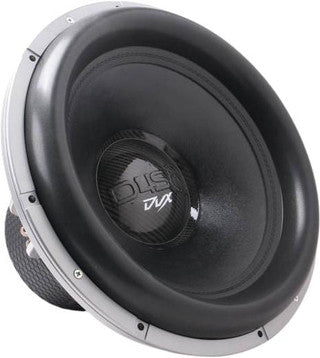

- Premium Carbon Fiber Dustcap: The real carbon fiber dustcap not only adds a sleek look but also provides extra strength and rigidity for superior performance.
- Optimize Your Experience: Pair this subwoofer with a high-power amplifier to unlock its full potential and ensure clear, powerful bass throughout your vehicle. It's ideal for both daily driving and show setups.
