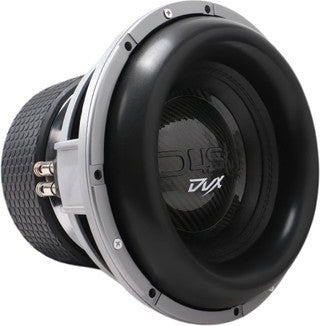

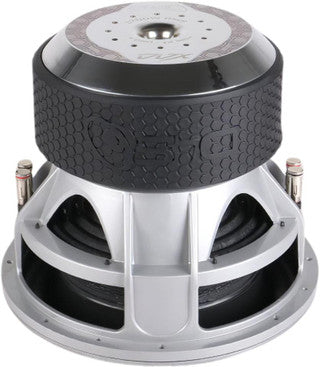

DOWN4SOUND DVX 12" SUBWOOFER - 2 OHM DVC | 1700W RMS

QUICK NOTES:

• RMS Handling: 1700W RMS
• Coil Size: 3 Inch
• Cutout Diameter: 11.14 inches / 283 mm
• Mounting Depth: 9.37 inches / 238 mm
• Weight: 60 lbs
• Xmax: 33 mm (one-way)
• Motor Size: 8.66 in - 220 mm | 4.33 inches (Radius)
• Highly extended pole piece for increased linear throw and durability
• Pole vent flared on both ends for superior cooling and low noise
• Extensive rear gap venting to ensure lower coil temperatures

Precision Engineering:

Features an optimized motor strength (BL Product: 26.202 T·m) and an effective piston area (Sd) of 43.374 cm² for efficient sound output.

Technical Specifications:

• Revc (DC Resistance): 2.790 Ohm
• Resonance Frequency (Fs): 38.337 Hz
• Total Moving Mass (Mms): 350.780 g
• Suspension Compliance (Cms): 49.82 μm/N
• Equivalent Volume (Vas): 138.126 L
• Sensitivity (SPL): 83.5 dB
• Qms (Mechanical Q): 2.981
• Qes (Electrical Q): 0.504
• Qts (Total Q): 0.431
• Outside Diameter: 12.44 in (316 mm)
• Displacement: 0.15 cu ft

Recommended Enclosure:

• Ported Box Volume: 2.5 cubic feet
• Port Tuning Frequency: 32 Hz
