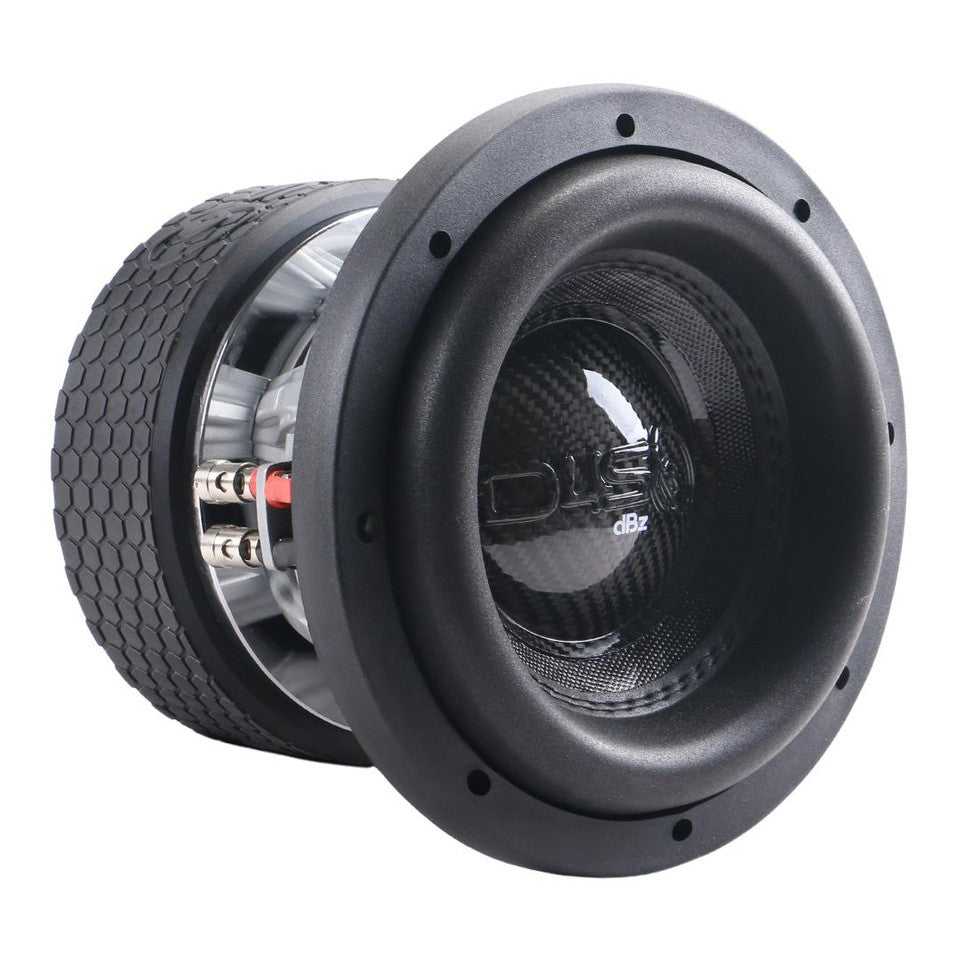

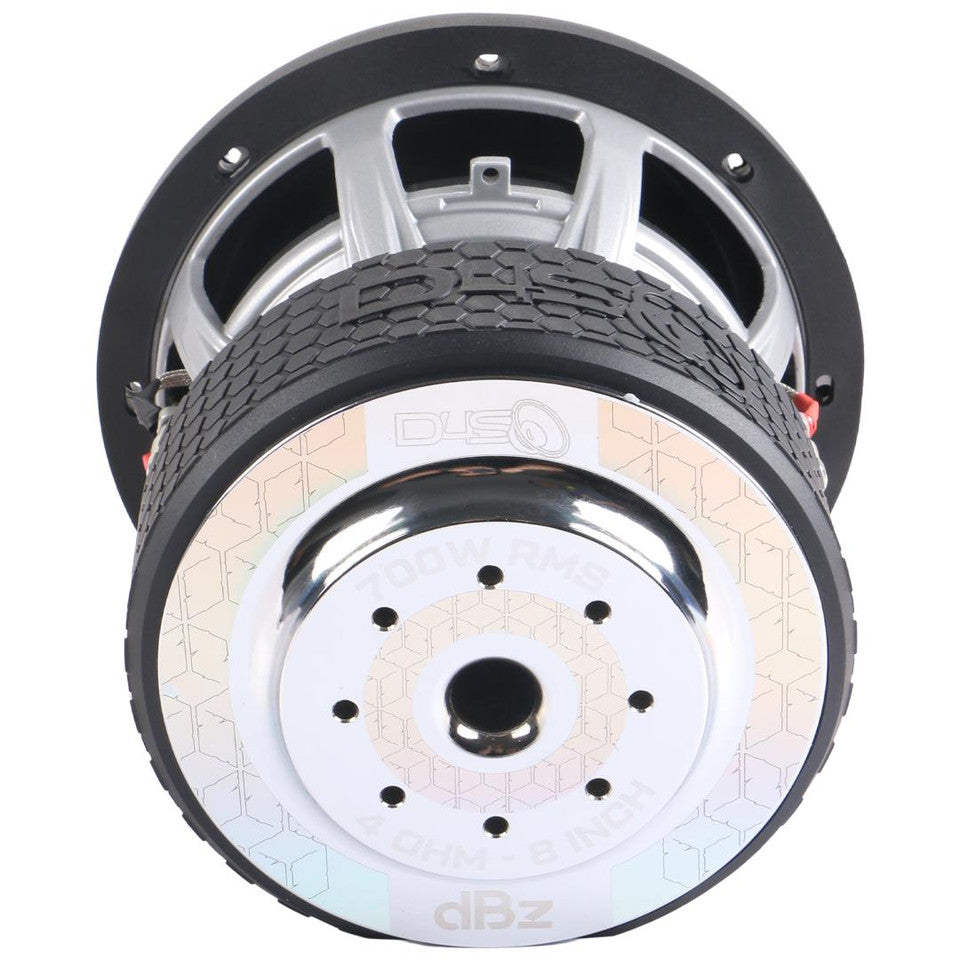

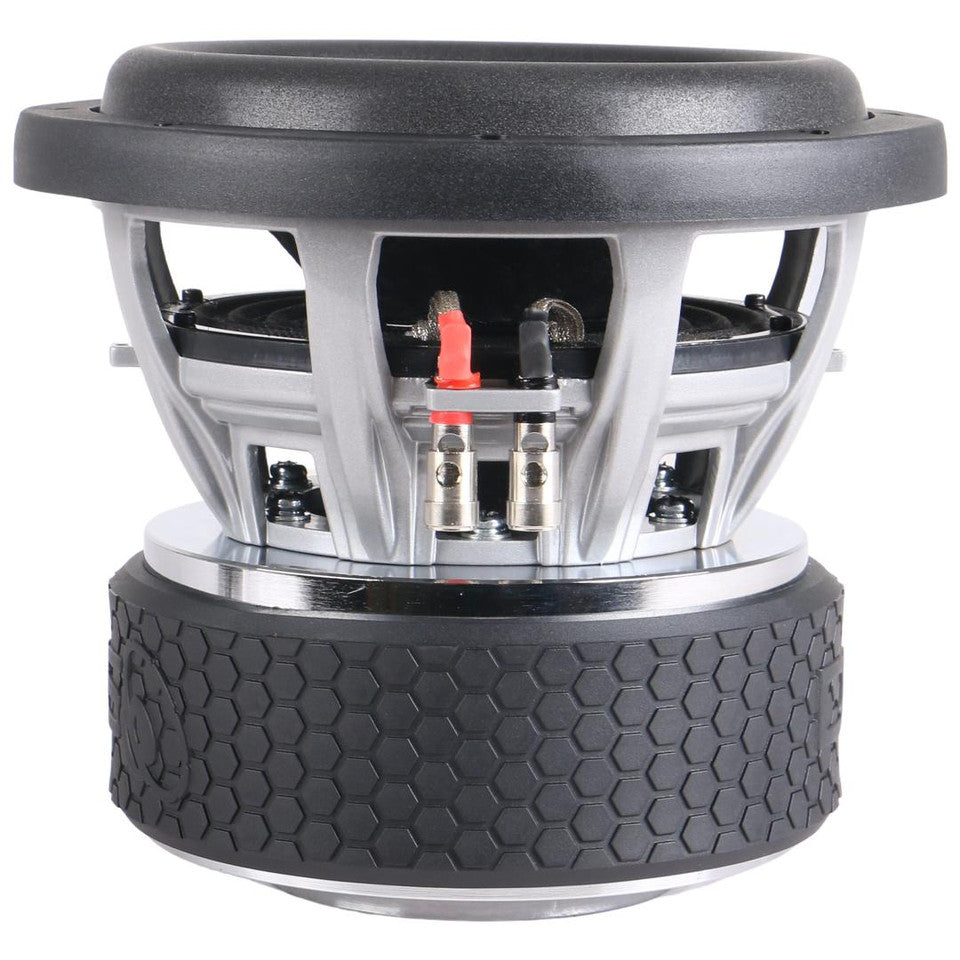

DOWN4SOUND DBz 8" SUBWOOFER - 2 OHM DVC | 700W RMS

QUICK NOTES:

• RMS OUTPUT: 700W RMS
• COIL SIZE: 2.5 INCH
• CUTOUT: 7.36 inches (187 mm)
• MOUNTING DEPTH: 6.61 inches (168 mm)
• NET WEIGHT: 23.6 lbs (10.7 kg)
• GROSS WEIGHT: 26.9 lbs (12.2 kg)
• XMAX : 21 mm (one-way)

Precision Engineering: Engineered with an optimized motor strength (BL Product: 21.109 T·m) and an effective piston area (Sd) of 210.105 cm² for powerful sound output at an affordable price.

Technical Specifications:

• Revc (DC Resistance): 2.000 Ohm
• Resonance Frequency (Fo): 45.650 Hz
• Total Moving Mass (Mms): 224.405 g
• Suspension Compliance (Cms): 54.380 μm/N
• Equivalent Volume (Vas): 3.222 L
• Sensitivity (SPL): 79.0 dB
• Qms (Mechanical Q): 1.770
• Qes (Electrical Q): 0.577
• Qts (Total Q): 0.435
• Voice Coil Inductance (Le): Not specified
• Mechanical Resistance (Rms): 0.771
• Sealed Enclosure: .3 cubic foot
• Ported Enclosure:  1 cubic feet

ENCLOSURE SPECIFICATIONS
DBZ 8

• Sealed Enclosure: 0.3 - 0.4 cu ft
• Ported Enclosure: 0.75 - 1.0 cu ft
• Recommended Tuning: 32 Hz
• Recommended Port Area: 12 - 16 sq in
• Displacement: 0.13 cu ft
• Depth: 7.36" (187 mm)
• Outside Diameter: 8.71" (221 mm)
• Cutout: 7.32" (186 mm)

Why You Should Buy:

1. Budget-Friendly Power: This subwoofer delivers 700W RMS of strong, punchy bass, providing high-quality sound without breaking the bank.
2. Versatile Compatibility: The 2-ohm DVC setup allows for multiple wiring configurations, making it perfect for various car audio installations.
3. Durable Build: Constructed with premium materials, including a carbon fiber dustcap, to withstand high sound pressure levels and ensure long-lasting performance.
4. Premium Carbon Fiber Dustcap: Adds strength, rigidity, and a sleek look, enhancing both performance and aesthetics.
5. Perfect for Any Setup: Whether you're upgrading your daily driver or building a show car audio system, the DBz 8" subwoofer offers the perfect blend of affordability and power.
