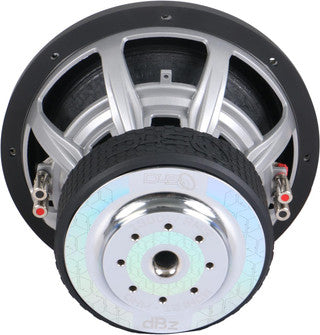

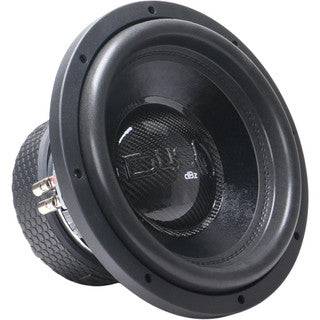

DOWN4SOUND DBz 12" SUBWOOFER - 2 OHM DVC | 1300W RMS

QUICK NOTES:

• RMS OUTPUT: 1300W RMS
• COIL SIZE: 2.75 INCH
• CUTOUT: 11.26 inches (286 mm)
• MOUNTING DEPTH: 7.68 inches (195 mm)
• NET WEIGHT: 32.8 lbs (14.9 kg)
• GROSS WEIGHT: 36.4 lbs (16.5 kg)
• XMAX : 28 mm (one-way)
• MOTOR SIZE: 7.48 in - 190 mm | 3.74 inches (Radius)
• Displacement: 0.15 cubic feet
• Outside Diameter: 12.44 inches (316 mm)

Precision Engineering: Engineered with an optimized motor strength (BL Product: 26.133 T·m) and an effective piston area (Sd) of 59.093 cm² for powerful sound output at an affordable price.

Technical Specifications:

• Revc (DC Resistance): 2.960 Ohm
• Resonance Frequency (Fo): 36.949 Hz
• Total Moving Mass (Mms): 352.866 g
• Suspension Compliance (Cms): 52.580 μm/N
• Equivalent Volume (Vas): 21.047 L
• Sensitivity (SPL): 85.4 dB
• Qms (Mechanical Q): 2.166
• Qes (Electrical Q): 0.475
• Qts (Total Q): 0.390
• Voice Coil Inductance (Le): Not specified
• Mechanical Resistance (Rms): 0.776
• Sealed Enclosure: 1.0 cubic foot
• Ported Enclosure: 1.75 cubic feet

Why You Should Buy:

1. High-Power Performance: This subwoofer delivers 1300W RMS of powerful, punchy bass, making it ideal for high-demand audio systems.
2. Versatile Compatibility: The 2-ohm DVC setup allows for multiple wiring configurations, making it perfect for various car audio installations.
3. Durable Build: Constructed with premium materials, including a carbon fiber dustcap, to withstand high sound pressure levels and ensure long-lasting performance.
4. Premium Carbon Fiber Dustcap: Adds strength, rigidity, and a sleek look, enhancing both performance and aesthetics.
5. Perfect for Any Setup: Whether you're upgrading your daily driver or building a show car audio system, the DBz 12" subwoofer offers the perfect blend of affordability and power.
