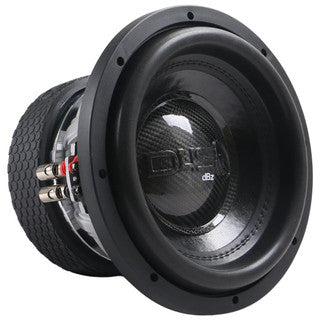

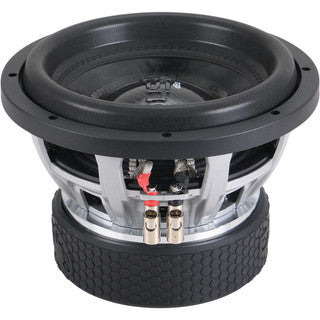

DOWN4SOUND DBz 10" SUBWOOFER - 4 OHM DVC | 1300W RMS

QUICK NOTES:

• RMS OUTPUT: 1300W RMS
• COIL SIZE: 2.75 INCH
• CUTOUT: 9.45 inches (240 mm)
• MOUNTING DEPTH: 7.36 inches (187 mm)
• NET WEIGHT: 31.7 lbs (14.4 kg)
• GROSS WEIGHT: 35.3 lbs (16 kg)
• XMAX : 28 mm (one-way)
• MOTOR SIZE: 7.48 in - 190 mm | 3.74 inches (Radius)

Precision Engineering: Engineered with an optimized motor strength (BL Product: 31.746 T·m) and an effective piston area (Sd) of 36.305 cm² for powerful sound output at an affordable price.

Technical Specifications:

• Revc (DC Resistance): 6.050 Ohm
• Resonance Frequency (Fo): 40.803 Hz
• Total Moving Mass (Mms): 331.124 g
• Suspension Compliance (Cms): 45.948 μm/N
• Equivalent Volume (Vas): 8.600 L
• Sensitivity (SPL): 82.5 dB
• Qms (Mechanical Q): 2.360
• Qes (Electrical Q): 0.510
• Qts (Total Q): 0.420
• Voice Coil Inductance (Le): Not specified
• Mechanical Resistance (Rms): 0.795
• Sealed Enclosure: .5 cubic foot
• Ported Enclosure: 1.0 cubic feet
• Outside Diameter: 10.79 in (274mm)
• Displacement: 0.09 cu ft

Why You Should Buy:

1. High-Power Performance: This subwoofer delivers 1300W RMS of powerful, punchy bass, making it ideal for high-demand audio systems.
2. Versatile Compatibility: The 4-ohm DVC setup allows for multiple wiring configurations, making it perfect for various car audio installations.
3. Durable Build: Constructed with premium materials, including a carbon fiber dustcap, to withstand high sound pressure levels and ensure long-lasting performance.
4. Premium Carbon Fiber Dustcap: Adds strength, rigidity, and a sleek look, enhancing both performance and aesthetics.
5. Perfect for Any Setup: Whether you're upgrading your daily driver or building a show car audio system, the DBz 10" subwoofer offers the perfect blend of affordability and power.
