DC Audio XL Elite Subwoofers

DC Audio XL Elite Subwoofers

$834.99 USD
$834.99 USD
Sale Sold out
Size
Ohm

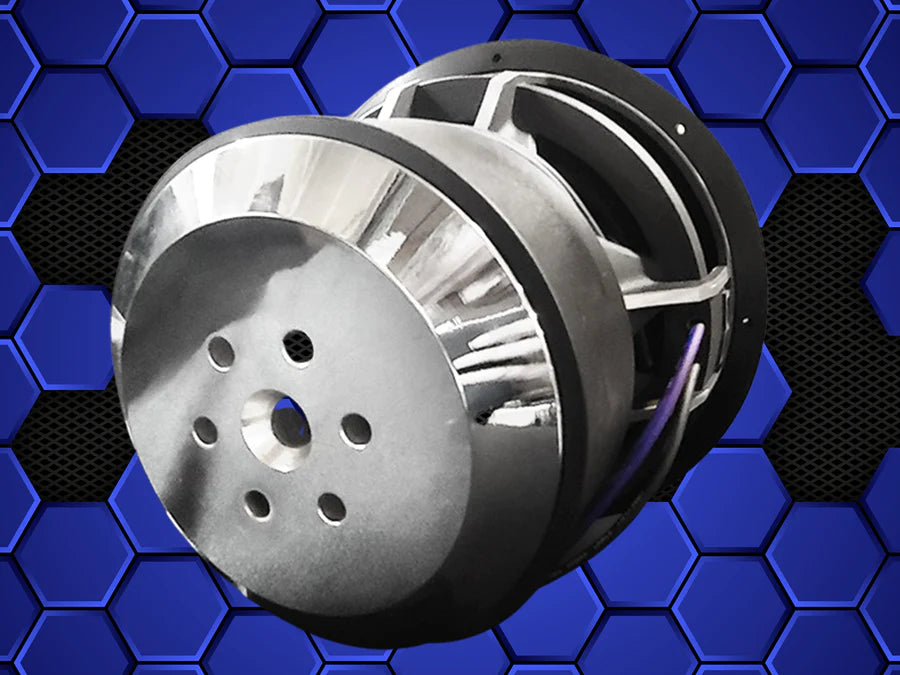

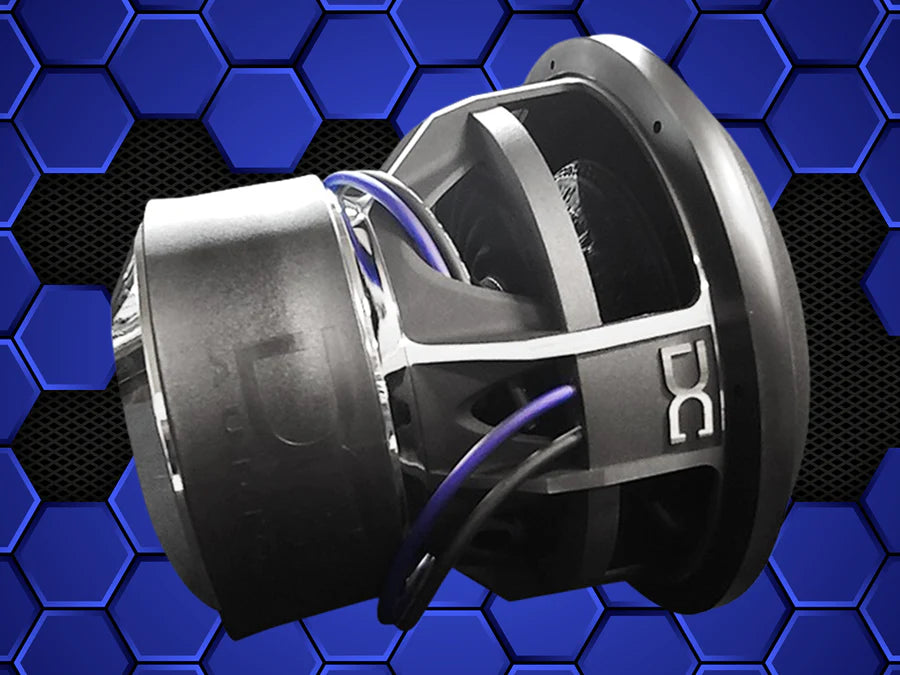

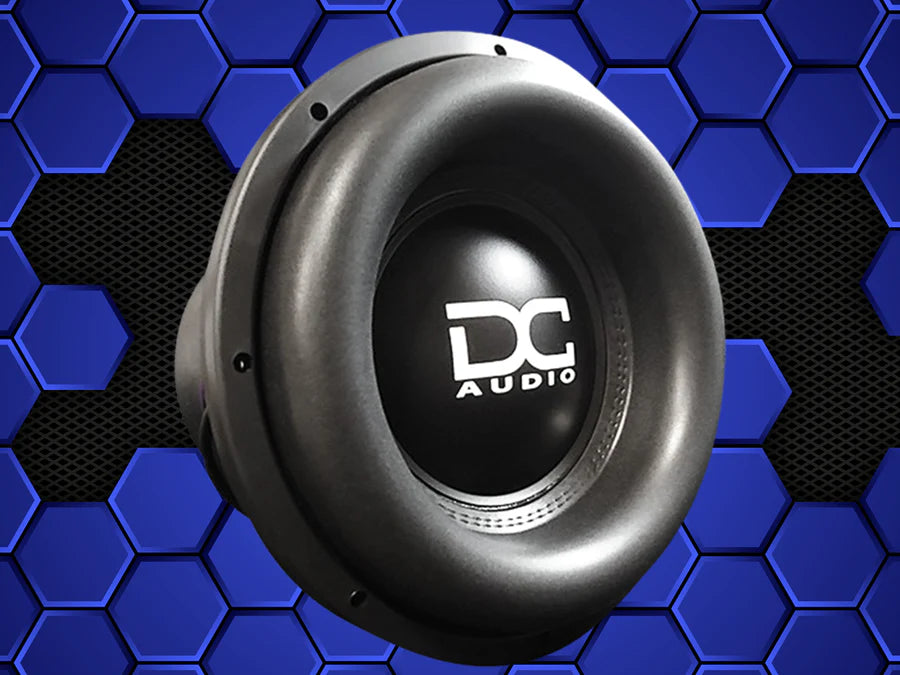

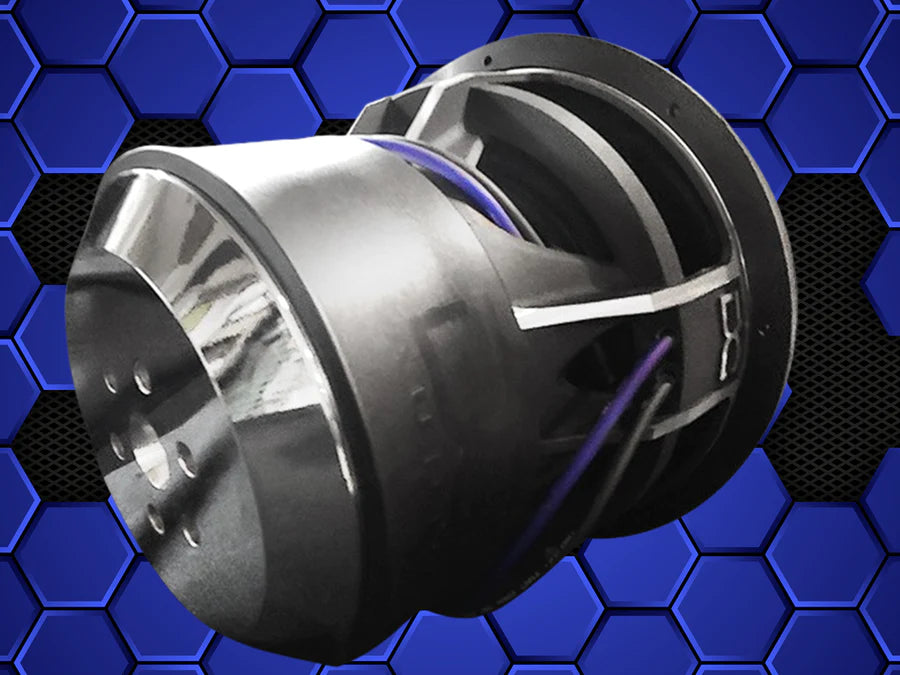

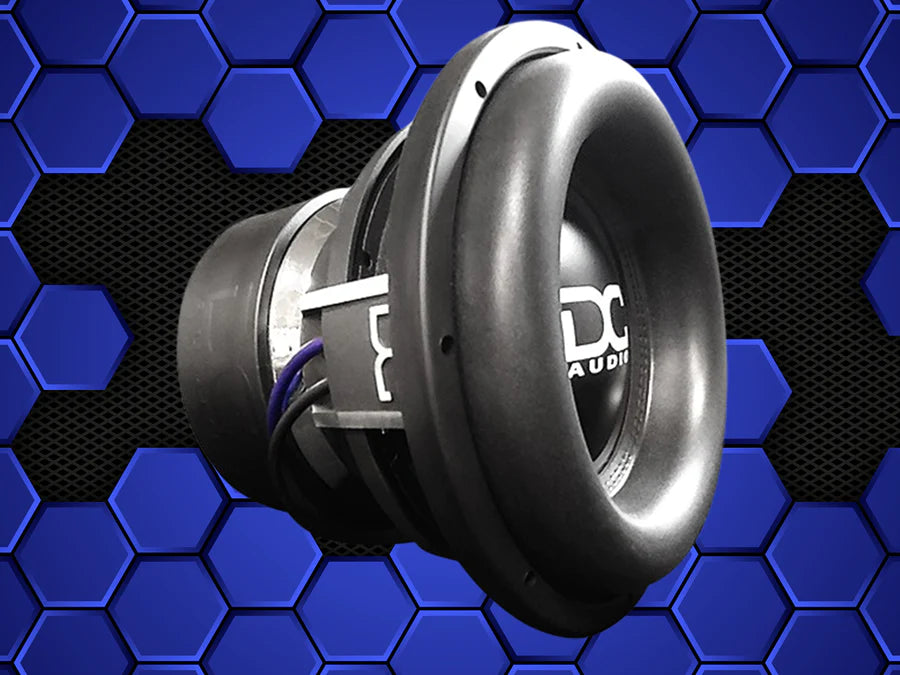

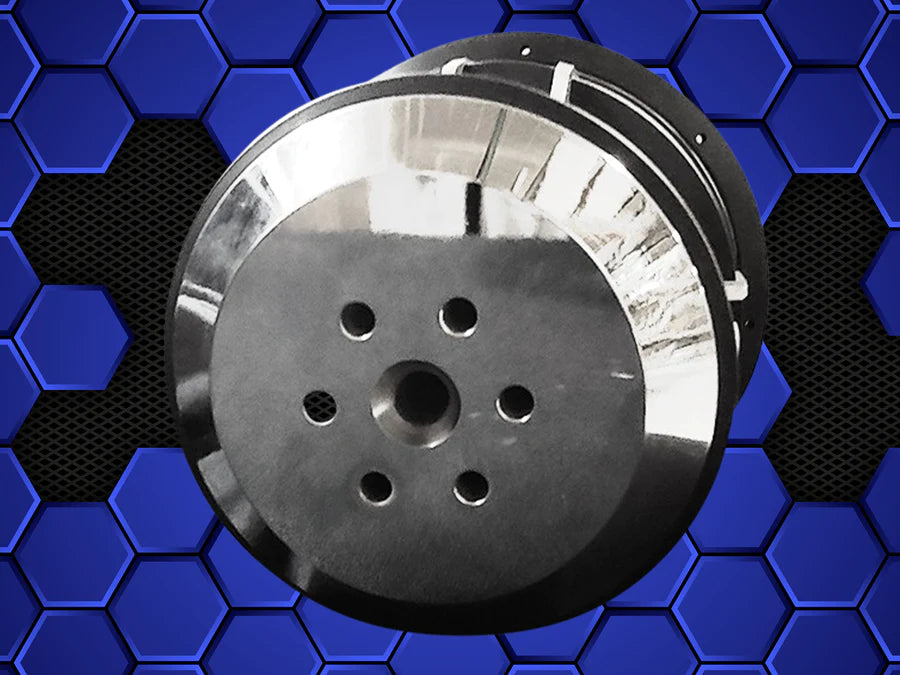

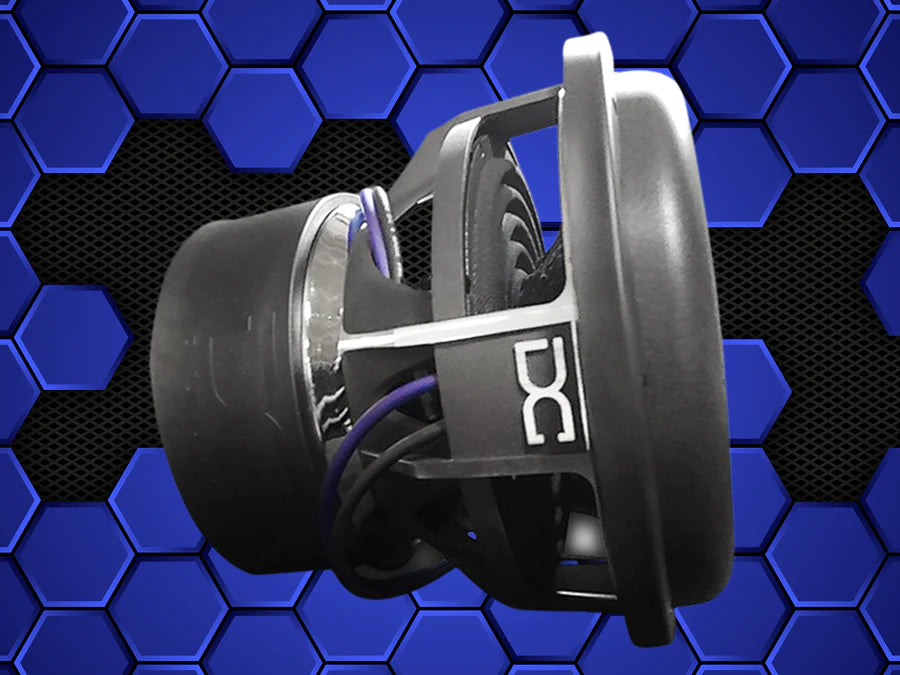

The XL m4 ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.

The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 15 and 18!!

Key Features

  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer foam surround
  • Polypropylene dust cover with DC logo
  • Quad 10"OD Spiders
  • Dual Extra heavy duty interweaved tinsel lead wire
  • Cast Heavy Duty DC Aluminum black & Grind frame
  • FEA analyzed and optimized motor assembly – Fully CNC machined
  • Rubber mounting gasket
  • Rubber Motor Boot
  • 8 Awg DC OFC Direct Leads
  • 3" 8 Layer Flat Wound Hi-temp Aluminum Voice Coil



 T/S Parameters



10" 12" 15" 18"
Mounting Depth N/A
 9.75" 11" 12"
Mounting Hole Diameter N/A 11.15" 14.25" 16.90"
Outside Driver Diameter N/A 12.5" 15.7" 18.5"
VC Diameter N/A 3.0" 3.0" 3.0"
Displacement N/A .19 ft .23 ft .26ft
Power Handling rms/peak N/A 2200/4400 2200/4400 2200/4400
Ohm Options N/A d.7/d1/d2/d4 d.7/d1/d2/d4 d.7/d1/d2/d4
Sd N/A 494 cm 791 cm 1159 cm
Vas N/A 22.368 L N/A L 129.16 L
Cms N/A 0.076 Mm/n N/A Mm/n 61.35 um/n
Mms N/A 332.5 g 367.4 g 534.19 g
Fs N/A 31.63 Hz 30.1 Hz 27.8 Hz
Bl N/A 24.165 N/A 23.73 N/A 26.49 N/A
Re N/A 4.169 Ohm 1.8 Ohm 4.66 Ohm
Le N/A 5.539 mH N/A mH 4.42 mH
Qms N/A 6.204
 6.31
 8.27
Qes N/A 0.4717
 0.37
 0.62
Qts N/A 0.4384
 0.35
 0.577
Xmax N/A 34mm 34mm 34mm
Ref SPL @1 watt N/A N/A 90.3 db 88.25 db
Suggest Sealed Box N/A 1.0 ft 2.0 ft 3.5 ft
Suggested Ported Box N/A 1.50 ft 3.25 ft 5.5 ft
