DC Audio NEO Elite 4.0 Subwoofers
DC Audio NEO Elite 4.0 Subwoofers
Regular price
$2,339.99 USD
Regular price
Sale price
$2,339.99 USD
Unit price
per
Couldn't load pickup availability

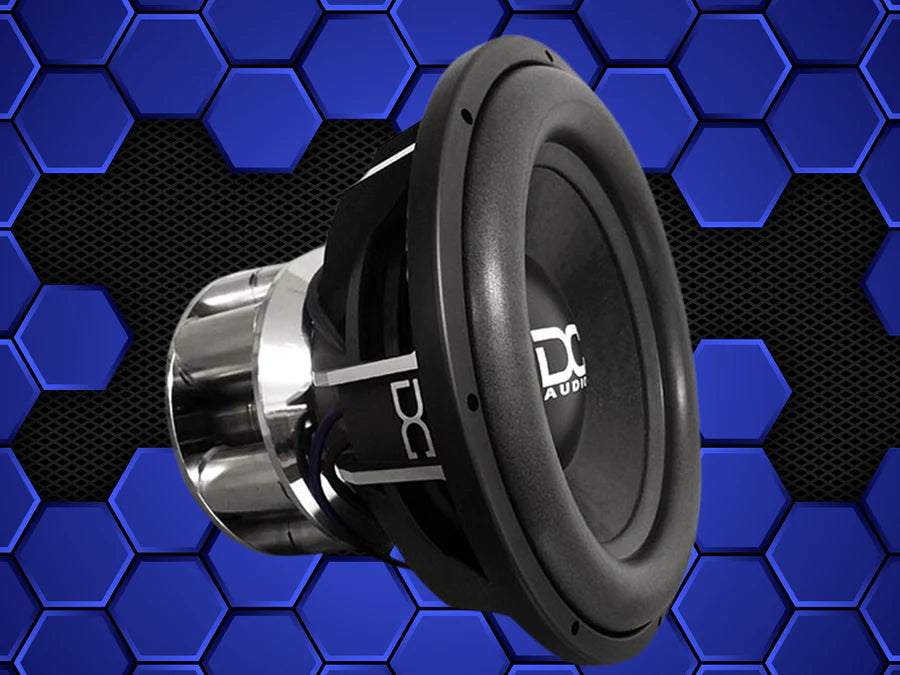

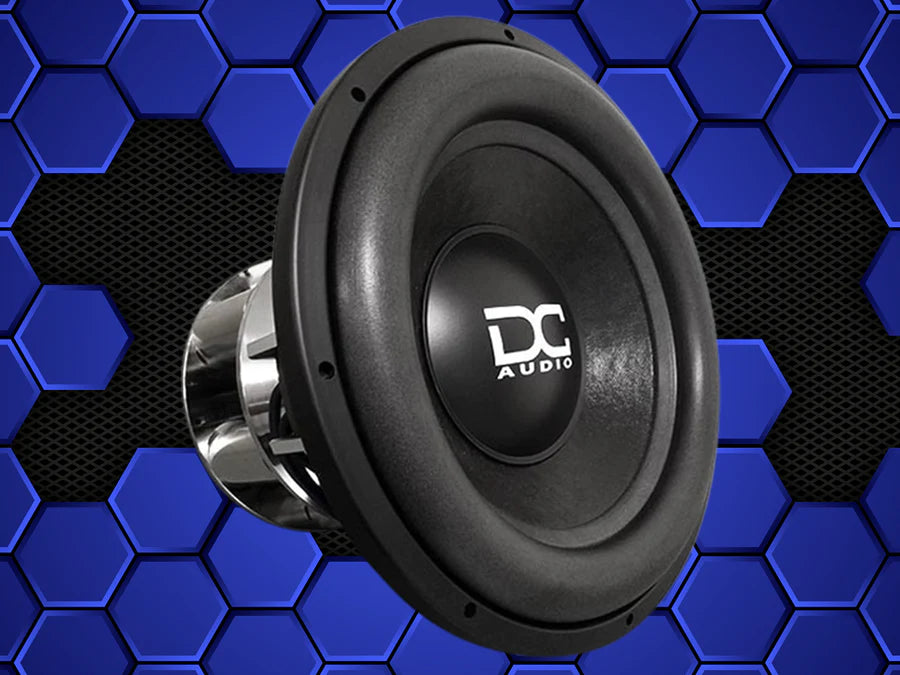

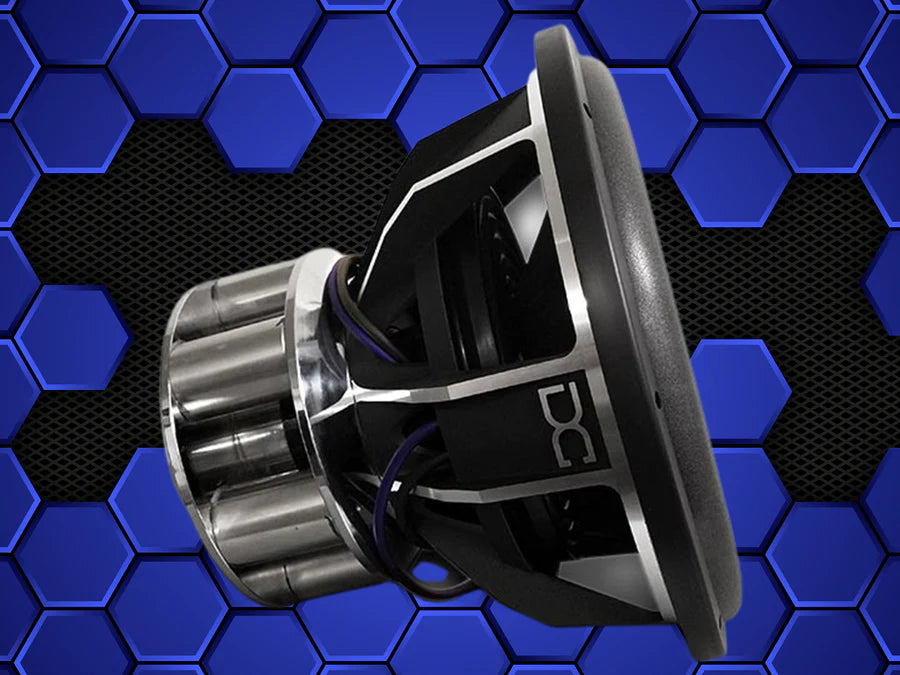

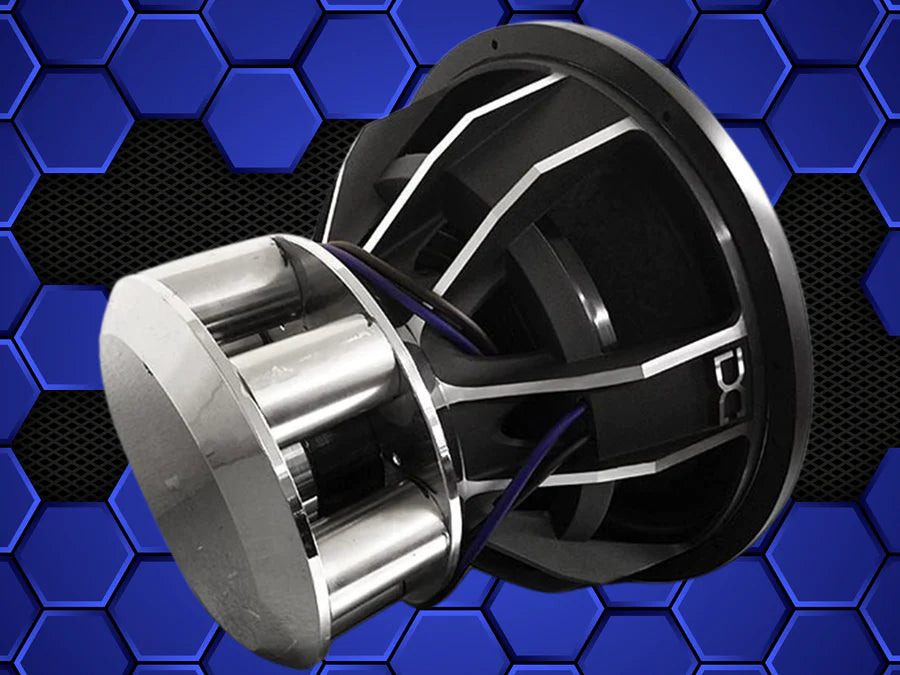

The Neo Elite is DC Audio’s 4” Coil Neo powered subwoofer. Why, because people asked for it and we thought it would be a fun project, that’s exactly what it turned out to be. The Neo Elite is a subwoofer that’s happy doing SPL but is even more suited for high power ground pounder applications. If you're in the market for a subwoofer that can take a lot of power get loud and crush lows, then this could be the one for you. The Neo Elite comes with a Large flat wound 4” Coil, 10” Spaced Spiders, The DC Frame, 6 columns of NEO, multi tensile leads sewn to the top spider and a High-Performance cone and surround.
- Extremely strong kraft pulp fiber reinforced cone
- Wide Long Throw foam surround
- Dome propylene dust cover with White DC logo
- 10” OD Spaced Spiders
- Extra heavy duty sewn tinsel lead wire
- Cast DC Series aluminum black frame / no invert mount
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- 8 AWG OFC Direct leads
- 4.0” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former
T/S Parameters
15" | 18" | |
---|---|---|
Mounting Depth | 12" | 13" |
Mounting Hole Diameter | 14.25" | 16.90" |
Outside Driver Diameter | 15.7" | 18.5" |
VC Diameter | 4.0" | 4.0" |
Displacement | .23 ft | .26ft |
Power Handling rms/peak | 4500/9000 | 4500/9000 |
Ohm Options | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
Sd | 815 cm | 1159 cm |
Vas | N/A L | 67.10 L |
Cms | N/A um/n | 34.01 um/n |
Mms | N/A g | 807.49 g |
Fs | N/A Hz | 30.36 Hz |
Bl | N/A N/A | 40.55 N/A |
Re | N/A Ohm | 3.9 Ohm |
Le | N/A mH | 4.70 mH |
Qms | N/A | 8.08 |
Qes | N/A | 0.36 |
Qts | N/A | 0.35 |
Xmax | 34mm | 34mm |
Ref SPL @1 watt | N/A db | 88.83 db |
Suggest Sealed Box | N/A ft | N/A ft |
Suggested Ported Box | 3.0 ft | 5.5 ft |
