DC Audio Level 6 Elite Subwoofers

DC Audio Level 6 Elite Subwoofers

Regular price $1,299.99 USD
Regular price Sale price $1,299.99 USD
Sale Sold out

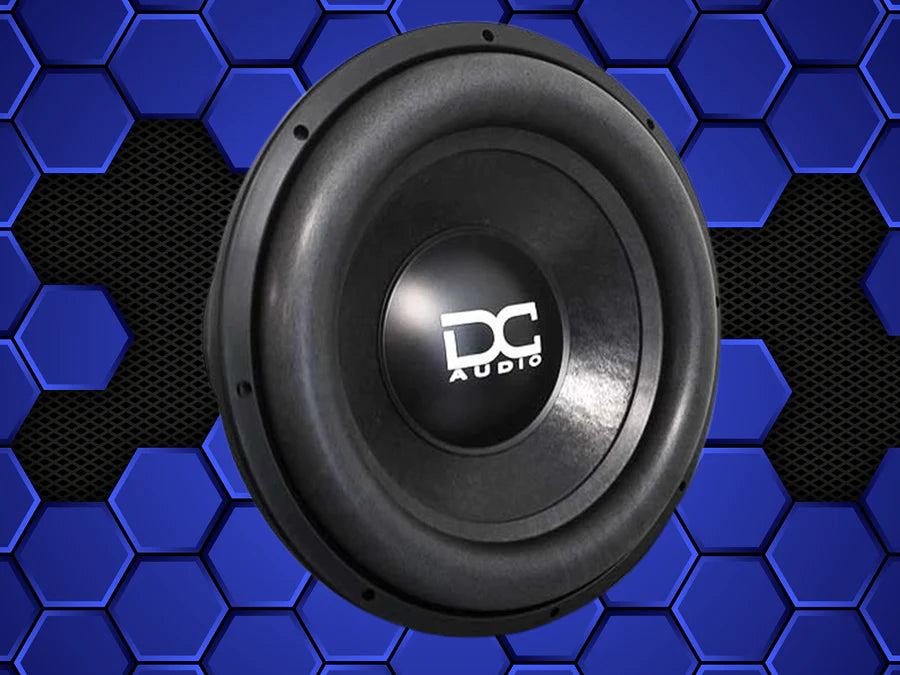

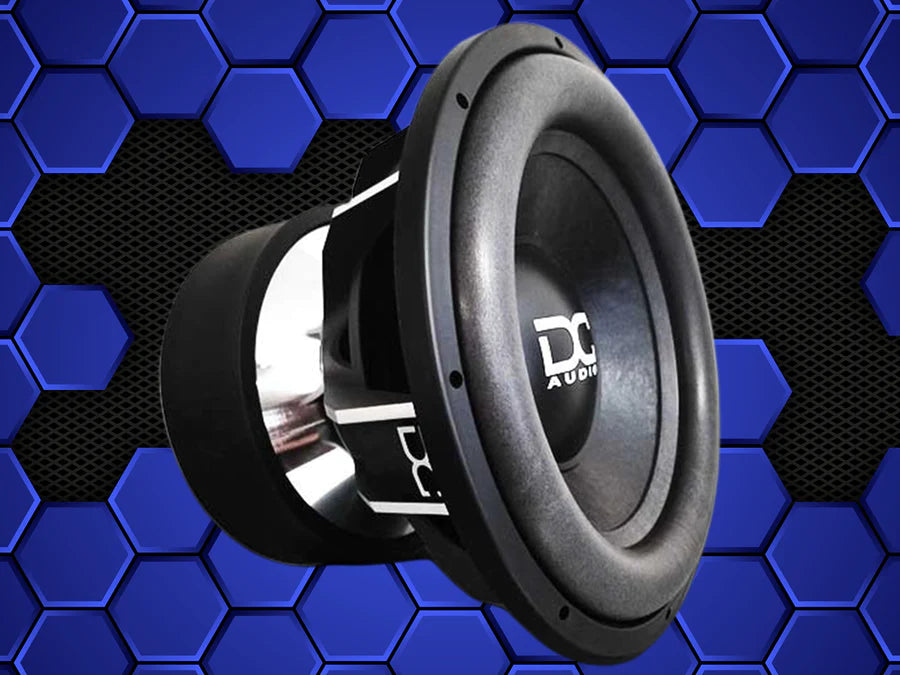

The Lv6m5 Elite is DC Audio’s 4” Coil Beast. It has evolved into what most big builds are after, a sub that can take lots of power and Crush Out the Lows!!

With a world that has access to amplifiers of today's size we knew we needed a subwoofer that could keep up. A Large flat wound 4” Coil and 10” Spaced Spiders with Plenty of Xmax clearance is what we have to offer in the Level 6!!

The new Lv6m5 Elite will find itself at home in the SPL lanes or slappin down your hometowns cruise strip.

To really step it up with this driver take a look at the Carbon Fiber cone and dustcap options available for it.

We have changed the cosmetic look of the driver as well as added a pole vent to the motor.

Key Features

  • Extremely strong kraft pulp fiber reinforced cone
  • Wide Long Throw foam surround
  • Dome polypropylene dust cover with White DC logo
  • 10” OD Spaced Spiders
  • Extra heavy duty sewn tinsel lead wire

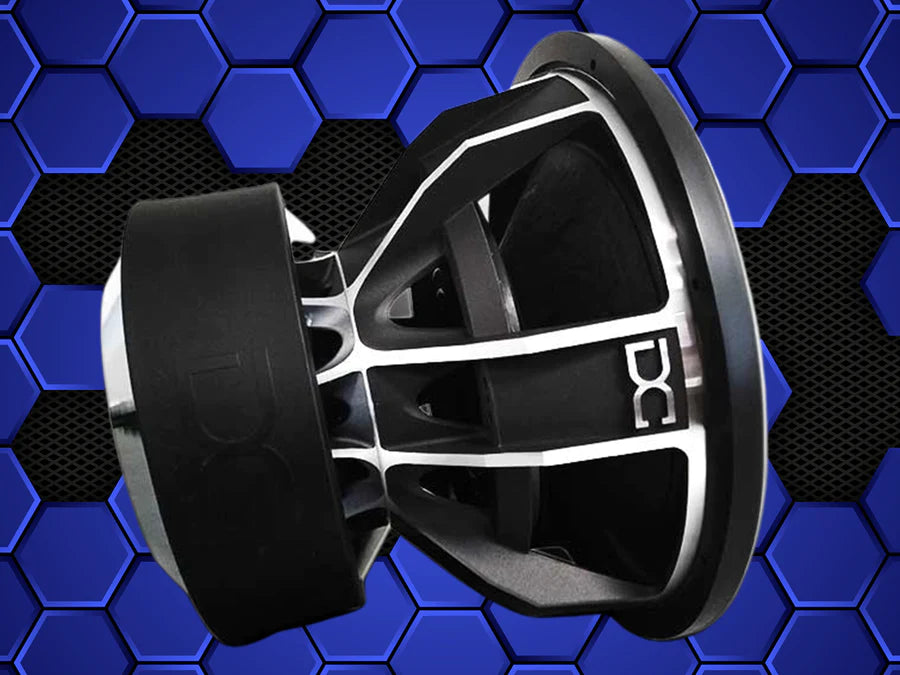

  • Cast DC Series aluminum black frame 15”/18”

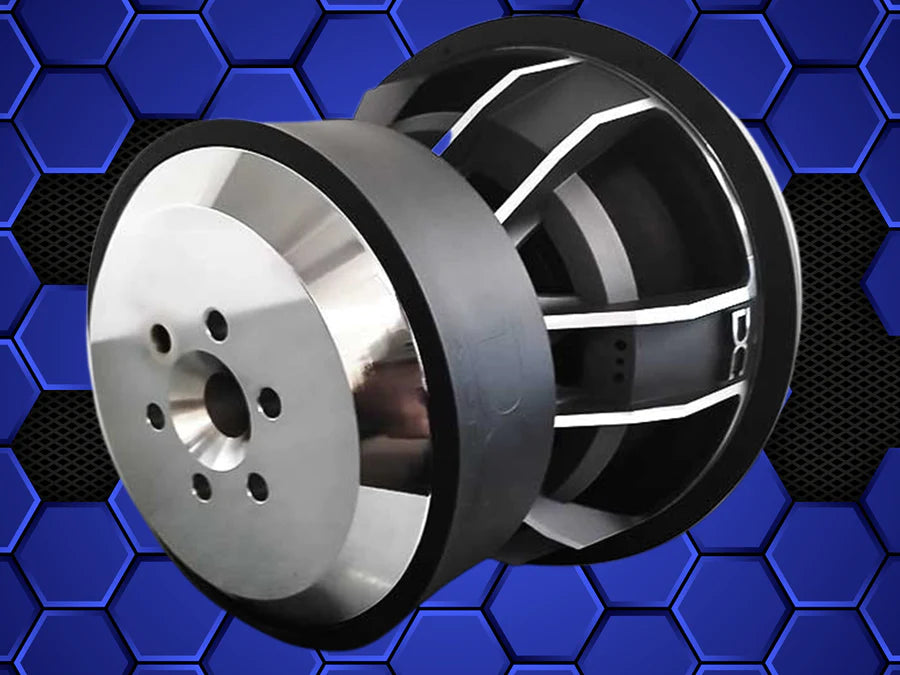

  • FEA analyzed and optimized motor assembly – Fully CNC machined
  • Rubber mounting gasket
  • Rubber Motor Boot
  • 8 AWG Direct leads
  • 4.0” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum voice coil former with high current input strips.


 T/S Parameters


15" 18"
Mounting Depth 12" 13"
Mounting Hole Diameter 14.25" 16.90"
Outside Driver Diameter 15.7" 18.5"
VC Diameter 4.0" 4.0"
Displacement .23 ft .26ft
Power Handling rms/peak 4500/9000 4500/9000
Ohm Options d.7/d1/d1.4/d2/d4 d.7/d1/d1.4/d2/d4
Sd 815 cm 1159 cm
Vas 37.60 L 82.29 L
Cms 44.23 um/n 41.71 um/n
Mms 724 g 762 g
Fs 28.78 Hz 28.21 Hz
Bl 38.97 N/A 37.09 N/A
Re 4.07 Ohm 3.76 Ohm
Le 5.17 mH 5.19 mH
Qms 7.45
Qes 0.35
Qts 0.33
Xmax 32mm 32mm
Ref SPL @1 watt 85.81 db 88.73 db
Suggest Sealed Box N/A ft N/A ft
Suggested Ported Box 3.25 ft 5.5 ft
