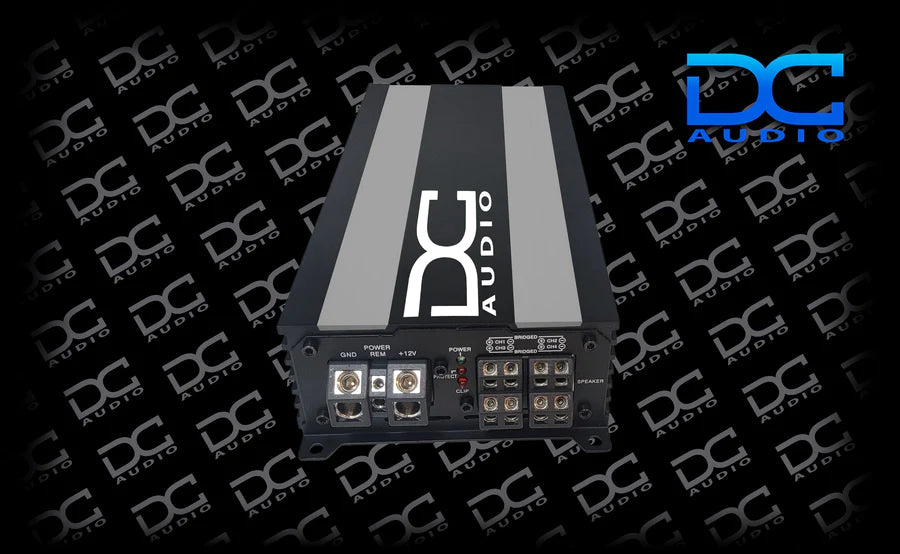

DC Audio CS 1000x4 4-Channel Amplifier

DC Audio CS 1000x4 4-Channel Amplifier

Regular price $499.99 USD
Regular price Sale price $499.99 USD
Sale Sold out

Amplifier Description

The DC-CS1000x4 is a compact series amplifier capable of making 1,000 watts. Its High power 4 Channel amplifier. It has 4awg inputs and onboard clipping lights. Designed to make more power in less space.

Output Power (RMS)

4 ohm 150Wx4 @ 14.4 Volts

2 ohm 240Wx4 @ 14.4 Volts

4ohm rms bridged power : 500W x 2

    Key Features

    • 2 ohm stable

    • Variable low pass filter

    • Variable High pass filter

    • Full Range Output

    • 9-16 Volts Capable

    • Onboard clip light


      Full Specs:

      DC Amp Model: DC-SF1000x4
      Input Sensitivity 6V~0.2V
      Frequency Response 10Hz~31KHz
      24dB / Octave Crossover YES
      High Pass 50Hz ~ 5ooHz
      Low Pass 50Hz ~ 5ooHz
      Crossover Selector Switch HPF / FULL / LP
      Remote Control No
      Signal to Noise Ratio dB105
      Damping Factor 100<
      THD @ 4ohms Less than 0.1%
      Fuse Rating External 100 amp
      LED Status Lights Power / Protect / Clip
      Heatsink Length 9.44"/240mm
      Heatsink Width 4.72"/120mm
      Heatsink Height 1.96"/50.0mm
