DC Audio 10.0k 10,000 watt Mono Block Amplifier

DC Audio 10.0k 10,000 watt Mono Block Amplifier

Regular price $2,639.99 USD
Regular price Sale price $2,639.99 USD
Sale Sold out

AMPLIFIER

The 10.0k competition series amplifier is rated as a 10,000 watt mono block. It comes with a bass knob that has a built in Clipping indicator. It is designed for 12-volt systems and will not function over 15.3 volts. Charging over 15.3 will void your warranty.

 Output Power (RMS):

  • 3,000x1 @ 4 ohms 14.4 volts
  • 5,500x1 @ 2 ohms 14.4 volts
  • 10,000x1 @ 1 ohms 14.4 volts

 Key Features:

  • 1 ohm stable
  • Variable low pass filter
  • Variable subsonic filter
  • Variable bass boost
  • RCA Pass Thru

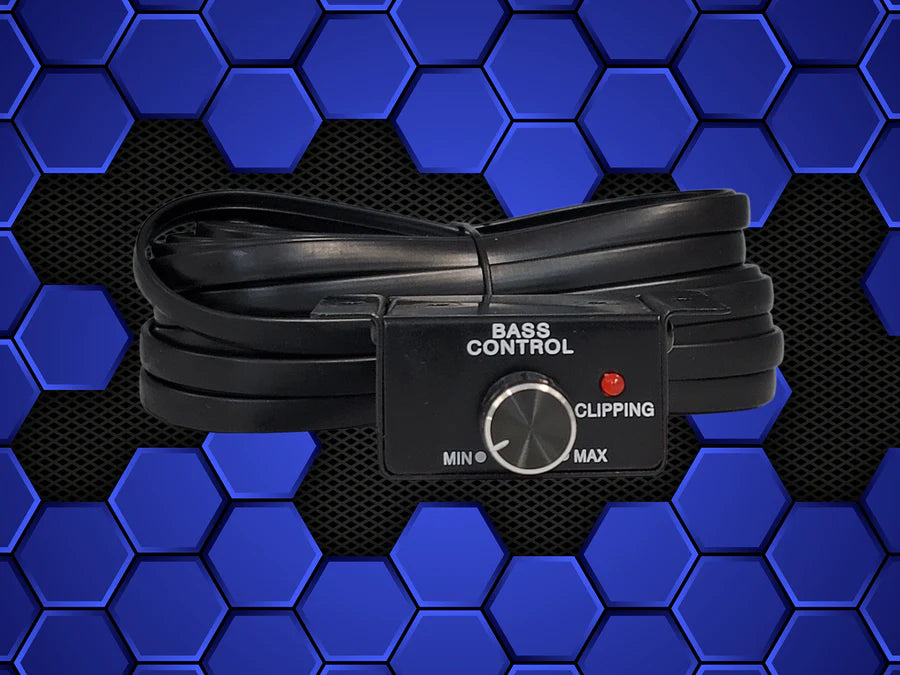

  • Wired remote control
  • Clipping Indicator
  • 8awg Speaker Terminals

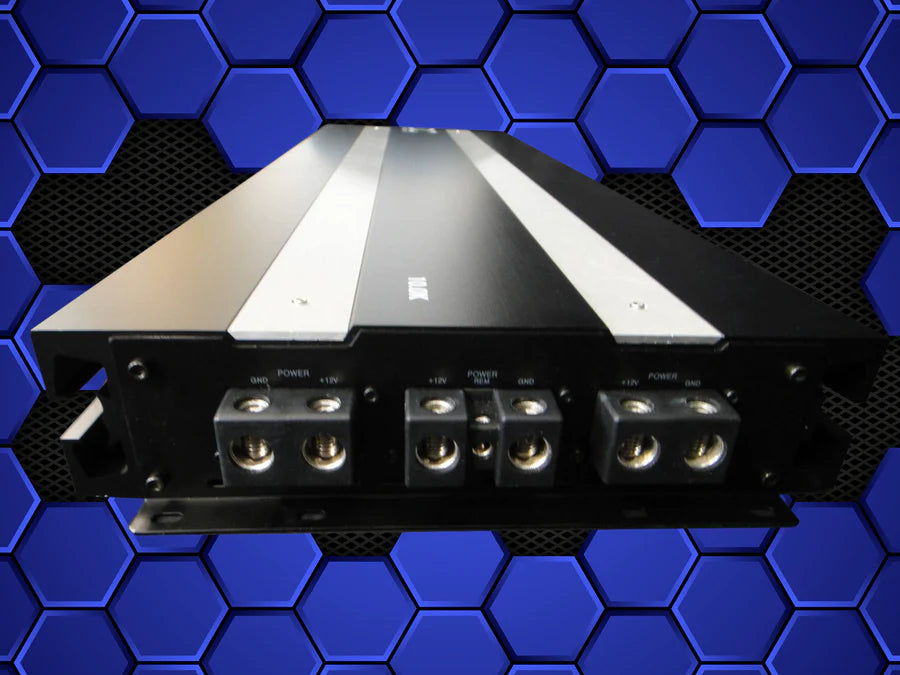

  • Triple 1/0awg Power and Ground Inputs
  • Tiffany Style RCA Jacks

Full Specs:

DC Amp Model: 10.0k
Input Sensitivity 6V~0.2V
Frequency Response 15Hz~270Hz
24dB / Octave Crossover YES
Low Pass 35Hz ~ 250Hz
Subsonic Filter 10Hz-50hz
Bass Boost @45hz 0 ~ 9db
Phase Shift 0 ~ 180
Remote Control Yes
Clip Indicator Yes
Signal to Noise Ratio dB100
Damping Factor 150<
THD @ 4ohms Less than 0.1%
Fuse Rating External 350 amp x 3
LED Status Lights Power and Protect
Master/Slave No
Heatsink Length 37.0"/940mm
Heatsink Width 11.5"/292mm
Heatsink Height 2.6"/66mm
